詳細情報 |
|||
| 使用法: | 圧着 | 製品名: | ターミナル・クリップ・マシン |
|---|---|---|---|

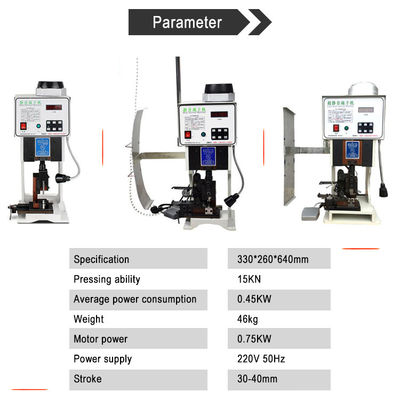

| 仕様: | 330*260*640mm | 押す能力: | 15kn |

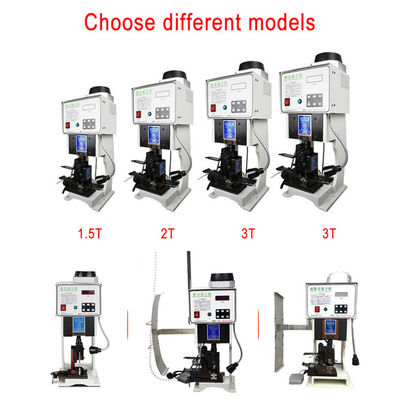

| 平均消費電力: | 0.45Kw | 重さ: | 46kg/1.5T/2T/3T/カスタム |
| モーターパワー: | 0.75kW | 電源: | 220V 50Hz |
| 脳卒中: | 30-40mm | 応用: | 末端にひだが付くこと |
| キーワード: | ワイヤターミナル・クリッピング・マシン | ||
| ハイライト: | 220V 50Hz Terminal Crimping Machine,15KN Pressing Ability Wire Terminal Crimper,Semi-automatic Cable Terminal Press |
||
製品の説明
FFC FPC Super Mute Cable Electrical Wire Terminal Harness Crimping Machine High-speed Semi Automatic Power 220V 50hz
Newstyle Semi-automatic terminal crimping machine for common terminal type connector series. Ultra-quiet terminal machine featuring high-tech frequency conversion technology and electronic precision positioning. Operates with significantly lower noise than traditional terminals while saving electricity. Offers convenient and quick variable settings, eliminating common faults associated with traditional terminal clutch and electromagnet systems.
Key Features
- Semi-automatic terminal crimping machine with precision operation
- Built-in frequency converter for high-speed, low-noise performance

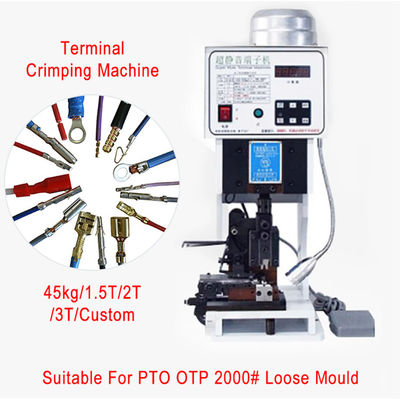

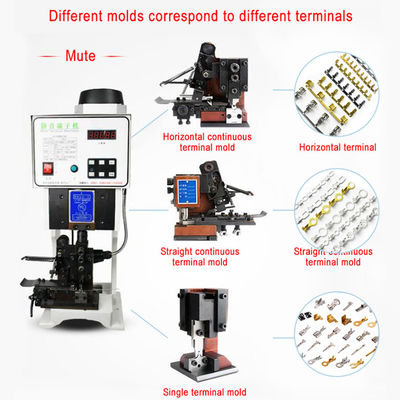

- Universal design accommodates various terminal types with easy mold changes
- Dual operation modes: manual for adjustments and automatic for production
- LED display tracks crimped terminal count
- Adjustable speed settings and customizable crimping die options
Product Gallery
