詳細情報 |
|||
| タイプ: | コネクタ | 応用: | 自動車、エネルギー貯蔵 |
|---|---|---|---|
| 性別: | 男 | 製品名: | DC入力バインディングポスト |
| 定格電圧: | 1000V DC Max | 耐久性: | >500回 |
| 接触のサイズ: | M10 | プラグの方向性: | まっすぐ /直角 |
| 定格電流: | 300a | IP学位: | IP68 |
| 色: | 赤/黒/オレンジ | 証明書: | CE ROHS |
| ワイヤー範囲: | 150mm2 | ||
| ハイライト: | 400A all-copper battery terminal connector,lithium battery stored energy connector,electric vehicle terminal connector with warranty |
||
製品の説明

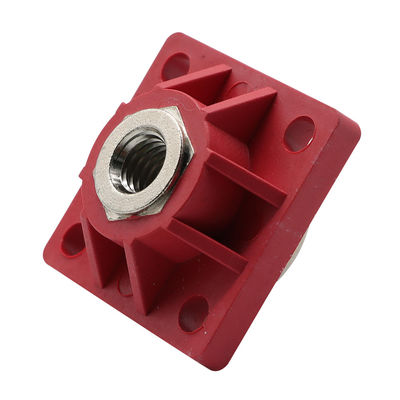

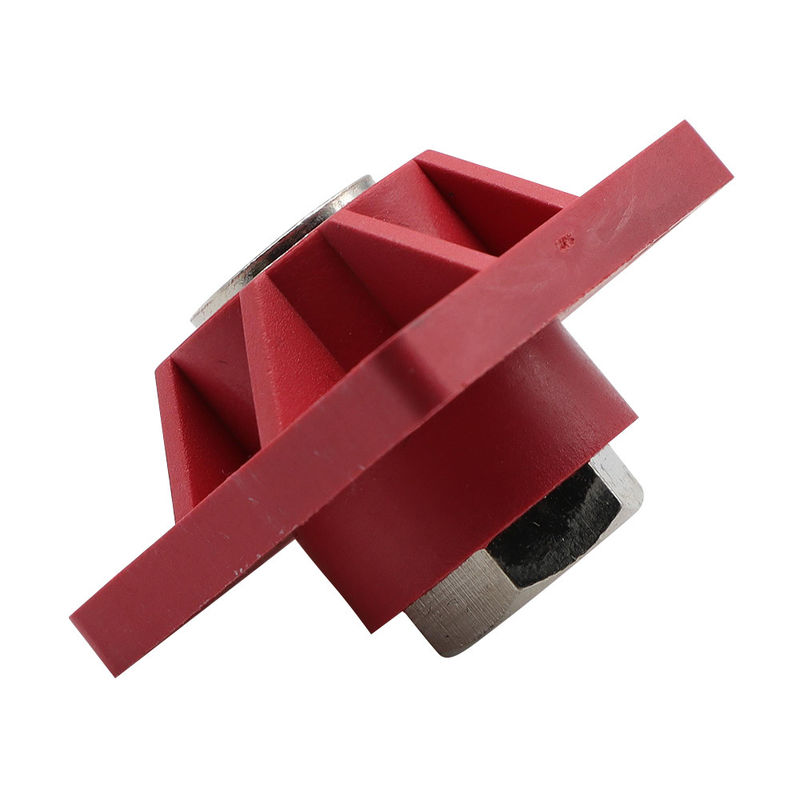

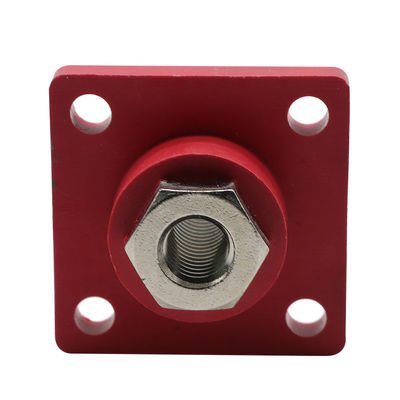

400A All-Copper Lithium Battery Stored Energy Electric Vehicle Terminal Connector
High-performance DC input binding post connector designed for electric vehicle energy storage systems.
Product Specifications
| Product Name | DC input binding post connector binding post |
|---|---|
| Rated Voltage | 1000V DC Max |
| Durability | >500 Times |
| Contact Size | M10 |
| Plug Orientation | Straight / Right Angled |
| Rated Current | 300A |
| IP Degree | IP68 |
| Certificate | CE RoHS |
| Wire Range | 150mm² |
Product Images
