詳細情報 |
|||
| タイプ: | スプライス | 色: | 黄色のバラの赤い青 |
|---|---|---|---|
| 材料: | ナイロン+缶 | 証明書: | ISO9001 SGS CE CQC ROHS |
| 製品名: | はんだシールワイヤコネクタ | ワイヤー範囲: | 10-12/ 14-16/ 18-22 AWG |
| パッケージ: | 180/200/210/220/240/250/270/480pcs/box | Moq: | 1BOX |
| アイテム: | Heatshrinkチューブ | 応用: | ワイヤー関係 |

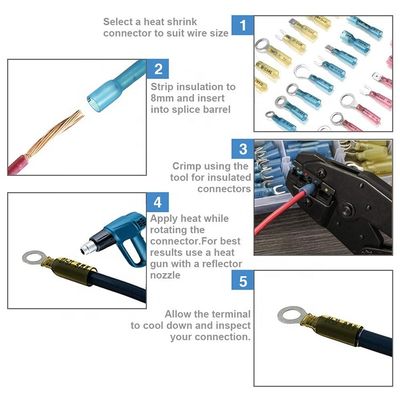

| 使用法: | ケーブルの接続 | ||
| ハイライト: | nylon waterproof wire connectors,heat shrink electrical terminals,marine automotive cable splice set |
||
製品の説明
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength(Room temp.) | Min.10.4Mpa | UL224 | 17.2Mpa |
| Elongation at break(Room temp.) | Min.200% | UL224 | 280% |
| Tensile strength after aging(158℃ 168hrs) | Min.7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging(158℃ 168hrs) | Min.100% | UL224 | 200% |
| Voltage withstand(Uh-aged) | Withstand 2.5kv for 1 minute and breakdown | UL224 | pass |
| Voltage withstand(Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown |
UL224 | pass |
| Copper corrosion(158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stabiity(158℃ 168hrs) | No sign of degradation (min.elongation 100%) | UL224 | pass |
| Cold blend(-30℃ 1hrs) | No crack | UL224 | pass |
| Maximum secant modulus(2%) | 173Mpa | UL224 | pass |
| Volume resistivity | Min.1014Ω.m | UL224 | pass |
| Heat shock(250℃ 4hrs) | No crack | ASTM D2671 | pass |
| Dielectric strength | >15.8kv/mm | ASTM D2671 | >25kv/mm |
